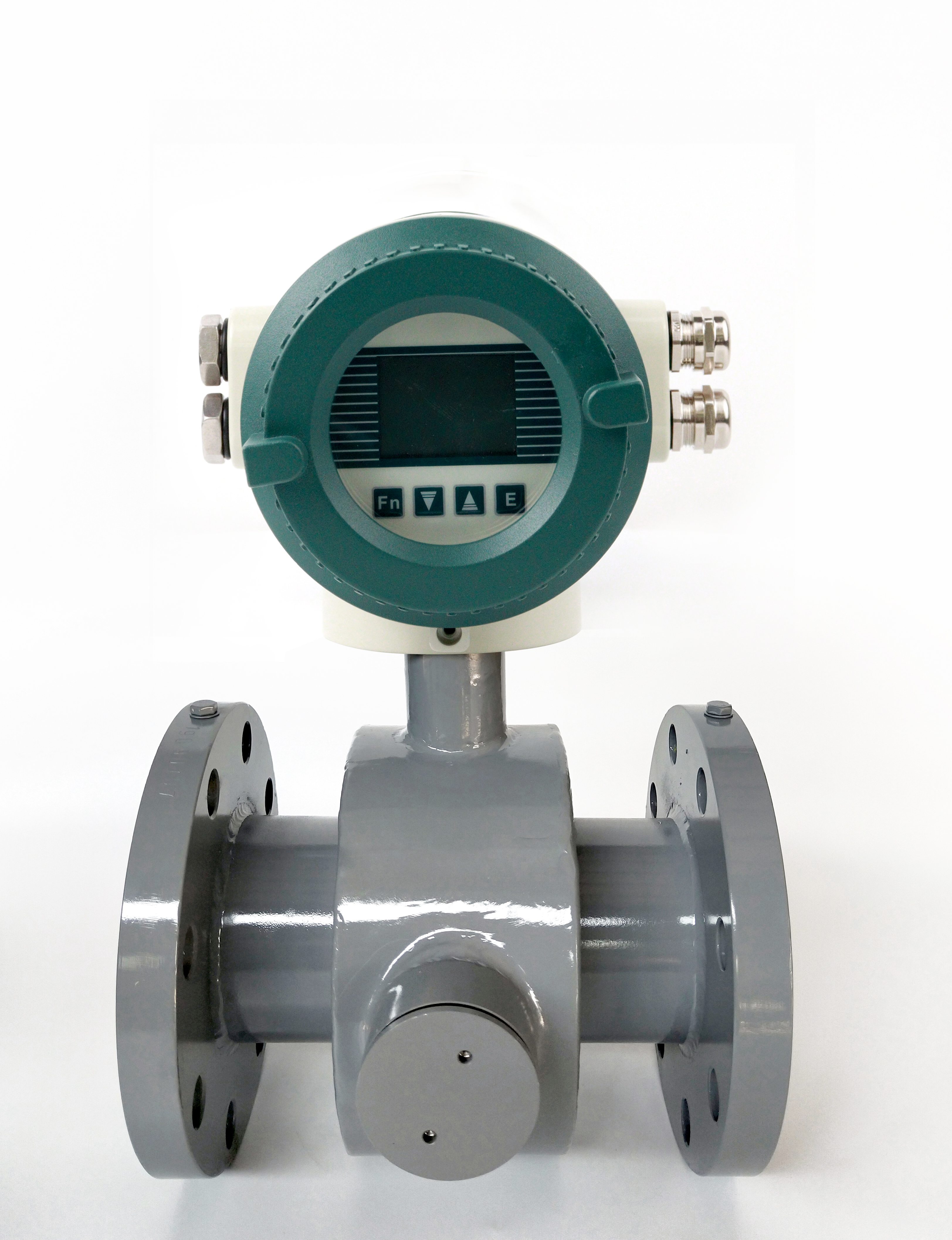

Slurry electromagnetic flowmeter

What is slurry electromagnetic flowmeter?



Many measurement sites contain a large number of solid particles or long fibers in their measurement media, such as mineral pulp, cement pulp, mortar, pulp, etc. In the process of measurement, these solid particles or long fibers will constantly collide with the measuring electrode in the electromagnetic flowmeter to produce a special sharp pulse interference signal, which makes the conventional electromagnetic flowmeter unable to work normally, thus affecting the reliable measurement of the flowmeter.



Slurry electromagnetic flowmeter is a kind of slurry measuring instrument specially designed for slurry environment. It can effectively eliminate the sharp pulse interference signal, so that the electromagnetic flowmeter can work accurately, stably and reliably in this special environment. High frequency and dual frequency excitation and high current excitation modes are adopted, and sharp pulse suppression control software is adopted to improve the signal strength and anti-interference ability of the flowmeter. High wear-resistant lining materials and electrode technology are adopted to make the performance of the flowmeter more reliable. Suitable for high concentration slurry environment and high pressure environment.


                   Main technical parameters of slurry electromagnetic flowmeter

Nominal diameter: DN50~DN1000

Medium temperature: -10~ +160 ℃

Ambient temperature: -20~+50 ℃

Working pressure: 1.6mpa~32mpa

Excitation mode: high frequency 85Hz or dual frequency

Lining material: PFA, F46, polyurethane rubber

Electrode material: 316L, tungsten carbide

Electrode type: scraper type (plug-in type)

Installation method: all in one separate type

Enclosure protection grade: sensor IP65, 67, 68

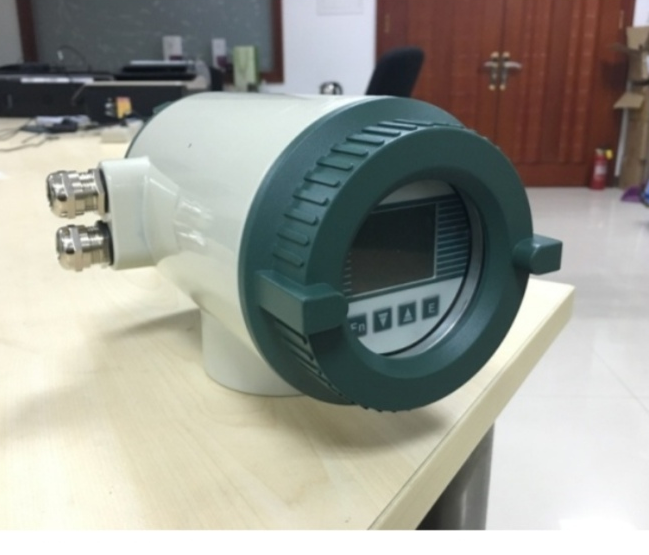

                                              Converter IP65
