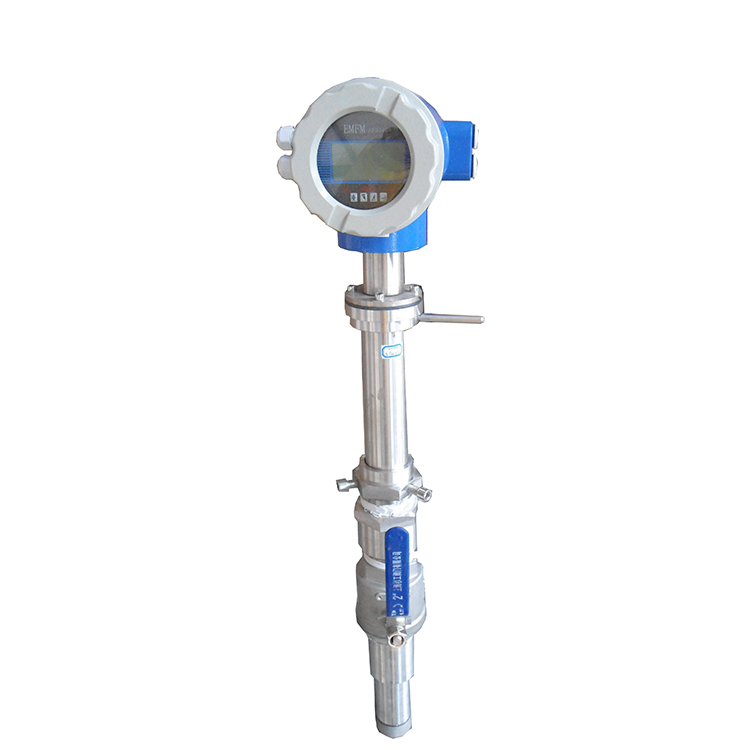

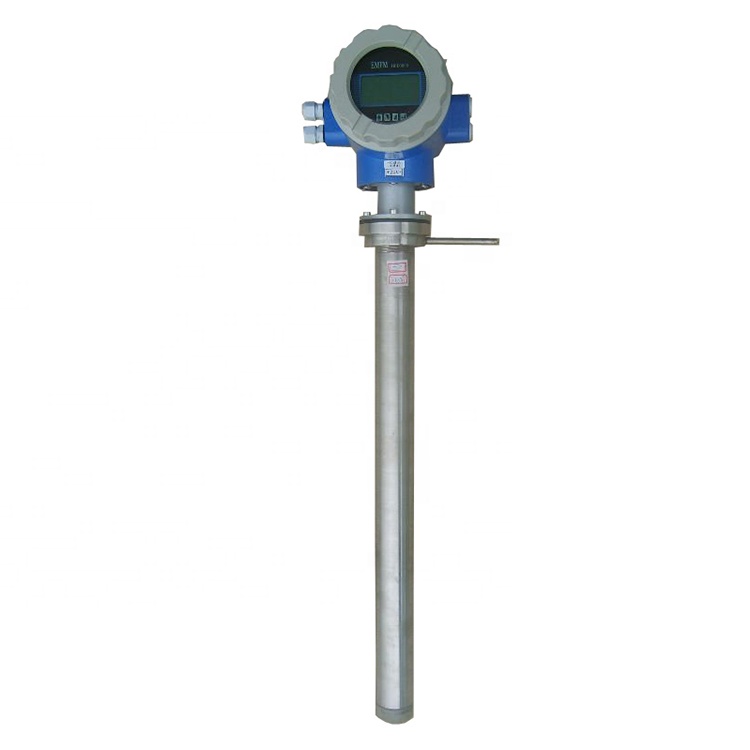

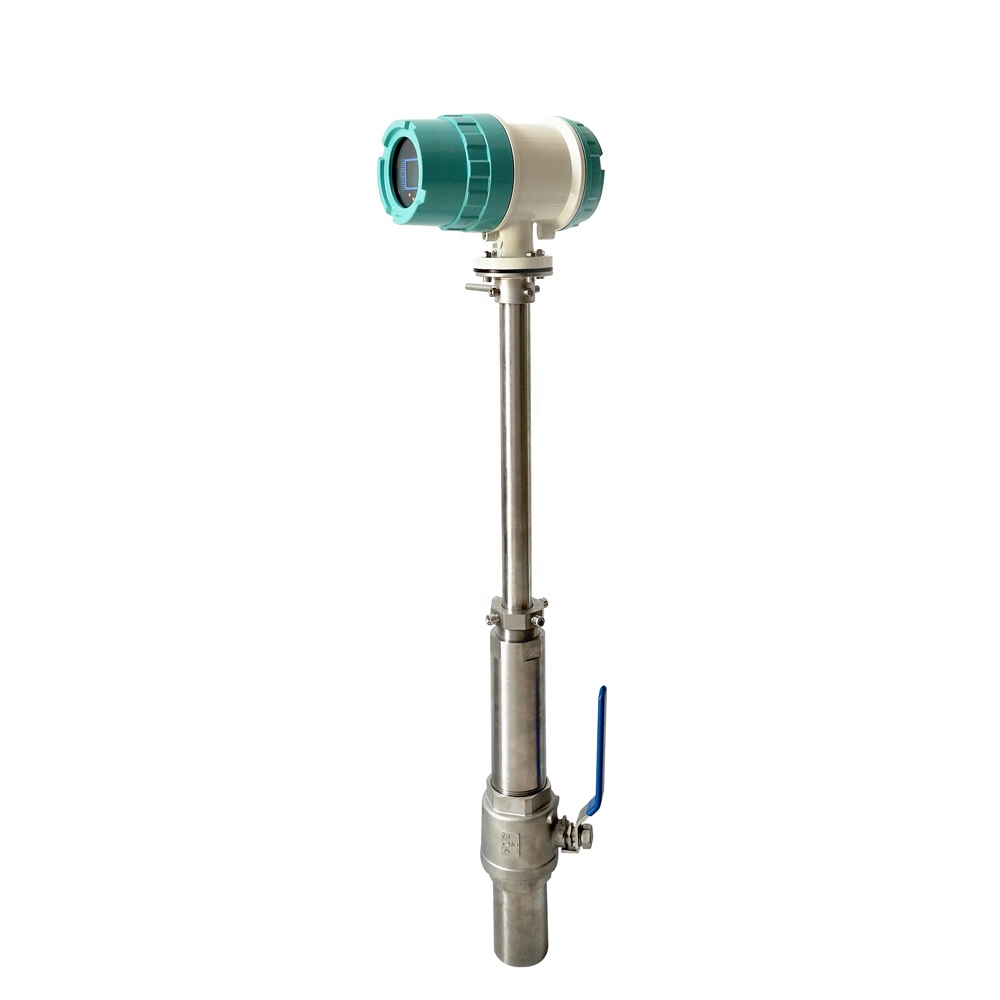

DN150~DN3000 Insertion Electromagnetic Flowmeter

DN150~DN3000 Insertion Electromagnetic Flowmeter

Applicable mediumLiquid

Not applicableGas

Insertion type electromagnetic flowmeter is a new type of fluid flow meter developed for large pipe size application.
0371-26665688 13353783998
Description of product details

Feature


Applicable sizes 150~3000mm

Operating pressure should be less than 1.6MPa (230 PSI)

Velocity range of 1~10m/s (3-36 fps)

Accuracy is  ±2.5%

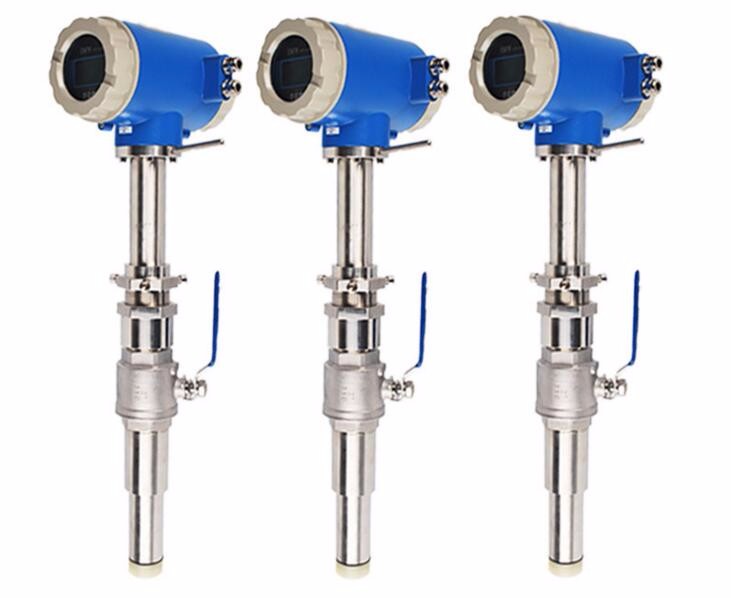

Hot-tap sensor can be installed and retracted from process piping

Conductivity of measured medium should be more than 50μs/cm

Electrode materials: SUS316L, Hastelloy B, Hastelloy C, Ta, Ti, Pt.

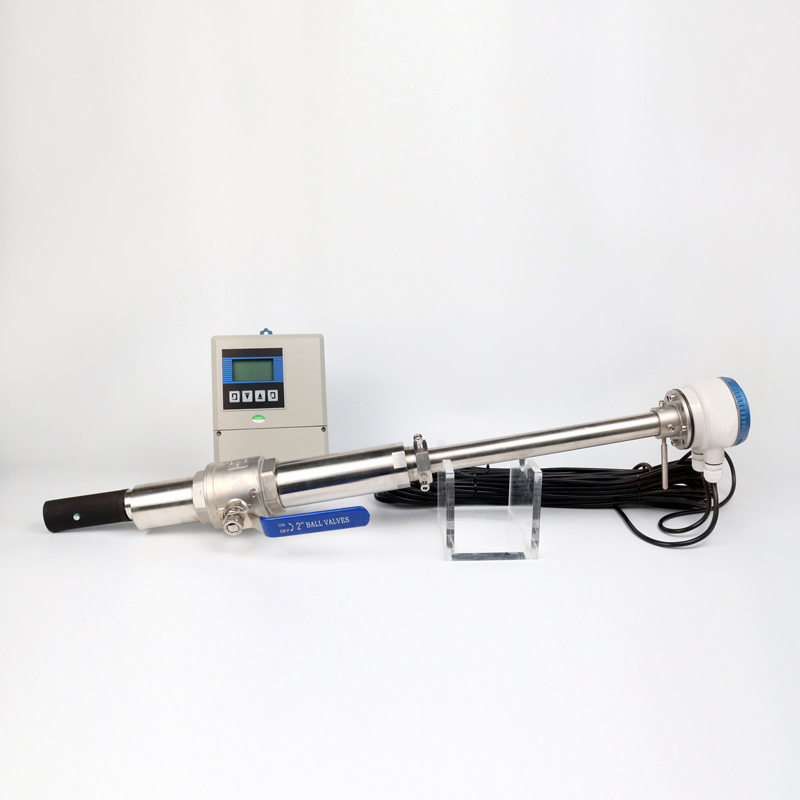

The max. distance between sensor and converter should be less than 50m (165 feet)


Specification


Cable Entry : 2 X PG11

Measuring Range : 1 - 10 m/s -bi-direction

Size : 150-2000mm

Conductivity : to be more than 50 uS/cm

Temperature up to 70 deg C

Connection : Weld, Flange

Pressure up to 1.6Mpa

Wetted part : SS304

Resistance excitation Coil:   50~70 ohm (std)

Protection : IP65(convertor) / IP 67(sensor)

Materials (std) :

Accuracy : +/-2.5% of reading

Transmitter housing : Aluminium

Power supply: 24 VDC, 220 VAC

Proble : 304SS

Outputs:4-20mA, Pulse, frequency

Detector housing : PVC

Communication:RS485 Modbus(std.),RS232 Modbus, HART,GPRS, Profibus

Electorde : 316L

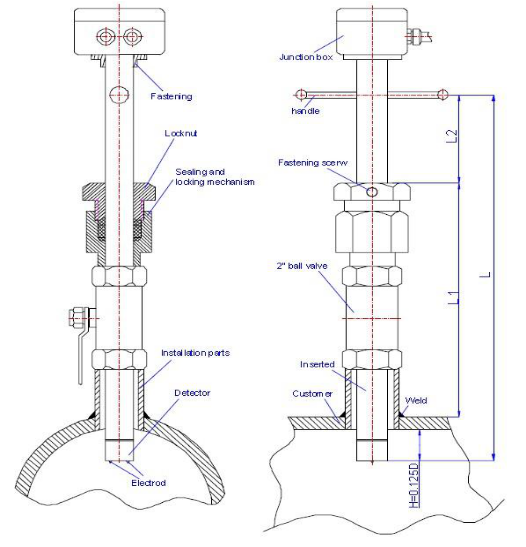

Dimension
