Sanitary turbine flow meter

Sanitary turbine flow meter

Applicable mediumLiquid Oil, water, d

Not applicableGas

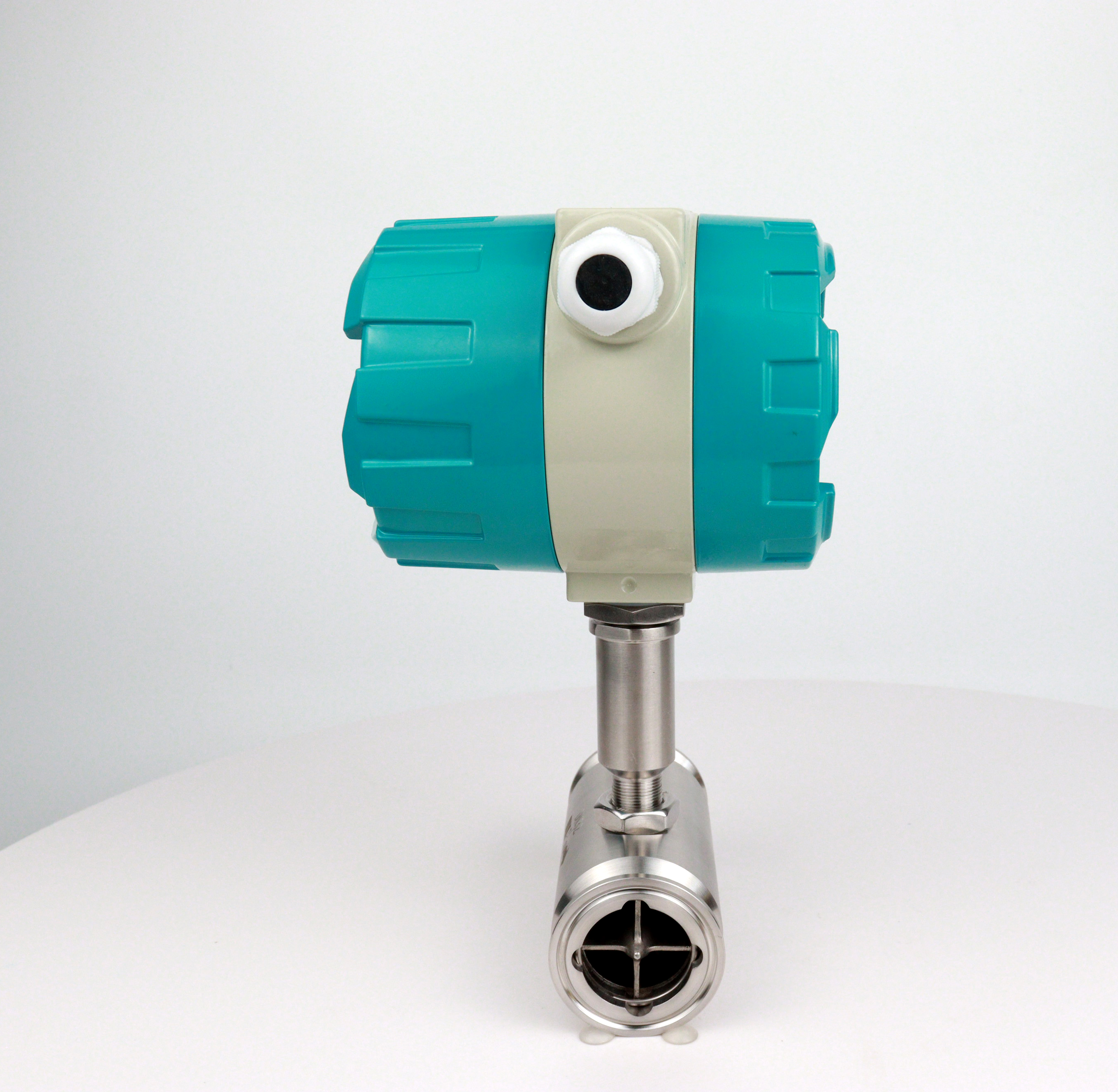

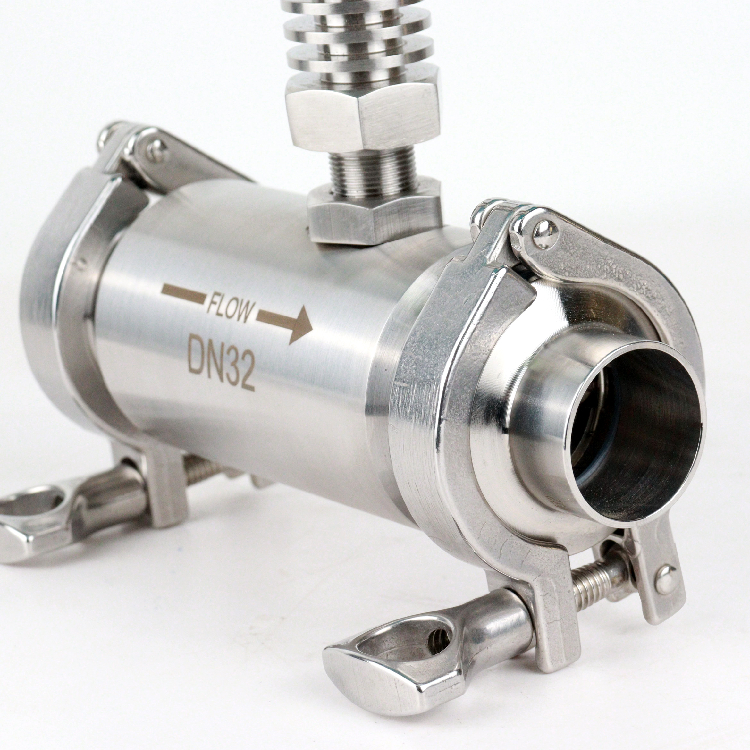

Sanitary connection turbine flowmeter adopt tri-clamp connector for sensor part, easy installaion and maintenance.
0371-26665688 13353783998
Description of product details

Features


Suitable diameter size DN4~DN65

Stainless steel 304 body material

Battery, 24V power supply optional

High accuracy 1.5%


Introduction


Sanitary liquid turbine flow meter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. Turbine flowmeter is designed to maximize and reduce pressure drop, maintain high flow in an extended flow range, and provide pulse output, which is linear flow. It has a wide range of application value in industries such as petroleum, chemical industry, metallurgy, and urban gas pipeline network.


Technical parameters


Model

LWGY-N

LWGY- A

LWGY-B

LWGY-C

Signal Output

Pulse

4-20mA

No

4-20mA/Pulse

Power Supply

24VDC±15%

24VDC±15%

Lithium Battery

24VDC±15%

Accuracy

1.0% or 0.5% of rate

Flow Range

Standard

Standard or Extended

Local Display

No

Yes

Communication

No

Optional RS485

Housing Material

SS304 or SS316

Impeller Material

2Cr13 or CD4Mcu Stainless Steel

Explosion Proof

ExdIIBT6 or ExiaIICT4

ExdIIBT6 or ExiaIICT4

Protection Level

IP65

IP65

Diameter

DN4 to DN200

End Connection

1. Flange (Standard: ISO; Optional: ANSI, DIN, JIS);
2. Thread (Standard: G; Optional: NPT);
3. Wafer

Fluid Temperature

-20°C~120°C (High Temperature Type: -20°C~150°C)

Ambient Temperature

-30°C~60°C
