Stainless steel electromagnetic flow meter

Stainless steel electromagnetic flow meter

Applicable mediumconductive liquid, d

Not applicableGas, air, oil, non-c

0371-26665688 13353783998
Description of product details

Brief introduction


DN 6 to DN3000 covers a wide range of pipe size.

Flow measurement range up to 1500:1.

A variety of liners and electrodes are available to satisfy different flow characteristic.

No obstacle in the pipe, no pressure-loss and lower requirement for straight pipeline.

Measurement is not affected by the variation of flow density, viscosity, temperature, pressure.

High accuracy measurement is guaranteed according to the linear measurement principle.

Full-digital processing, high noise resistance and reliable measurement.

High definition LCD display with backlight.

4-20mA, pulse, RS485 or RS232 interface supports digital communication.


Features

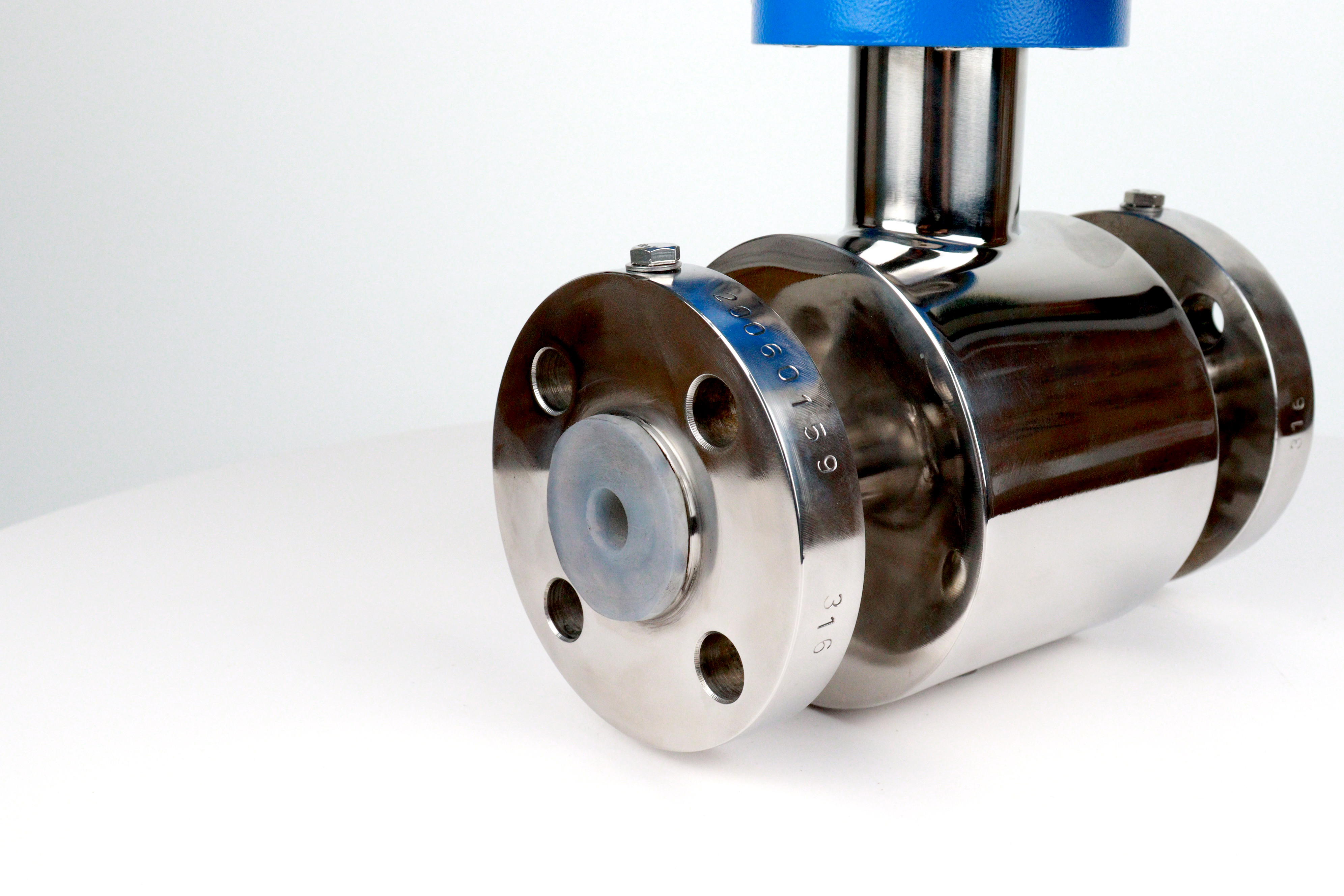

SS304,SS316 flange and housing material

Suitable for all conductive liquids

No movinh parts

Nesr zero pressure drop

High accuracy 0.5%

Wide range in communication RS485, RS232, Modbus, Hart, GPRS


Technical parameters

  Item

 The Specifications of electromagnetic flow meter

Installation Type

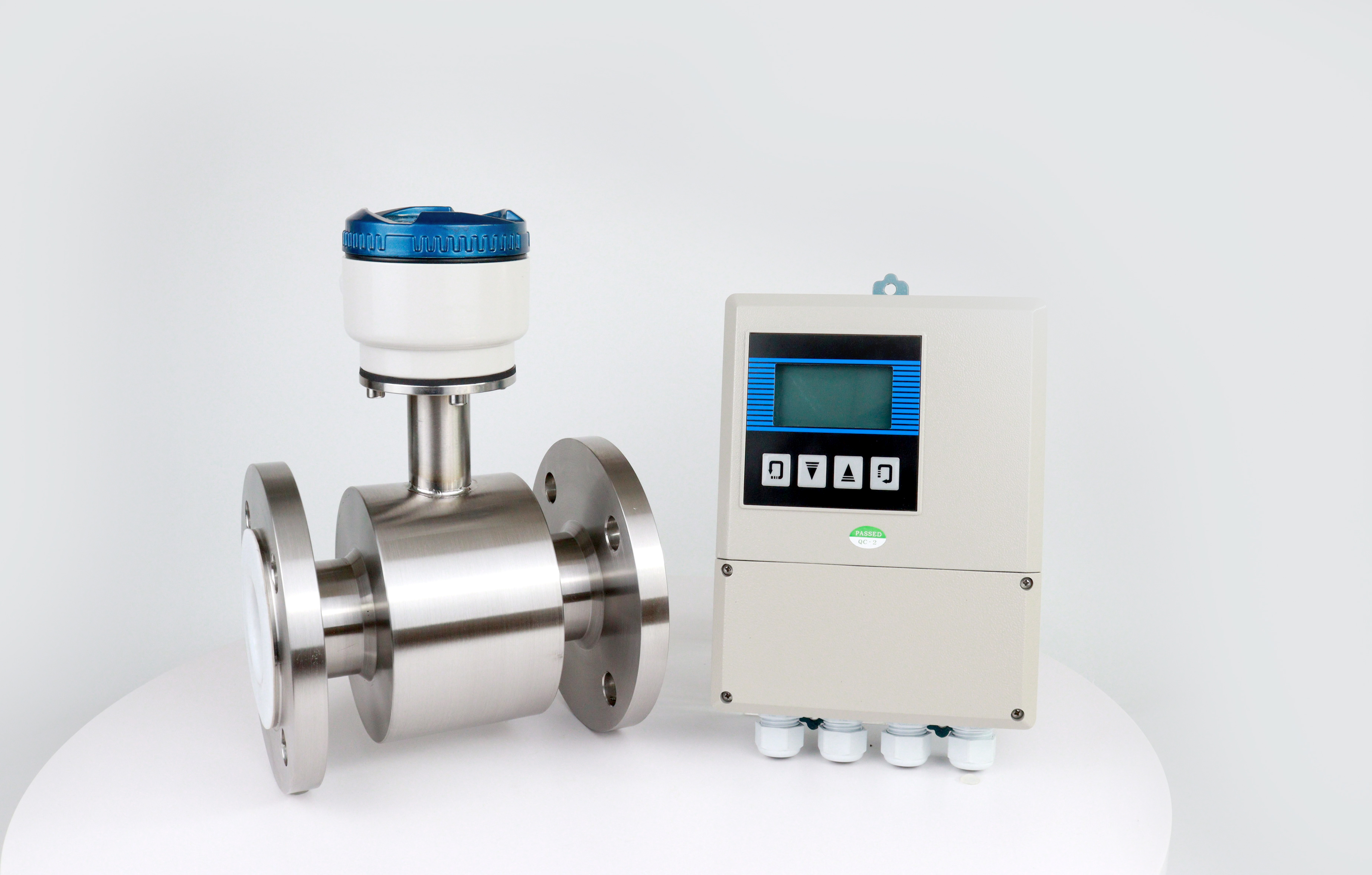

Split / remote

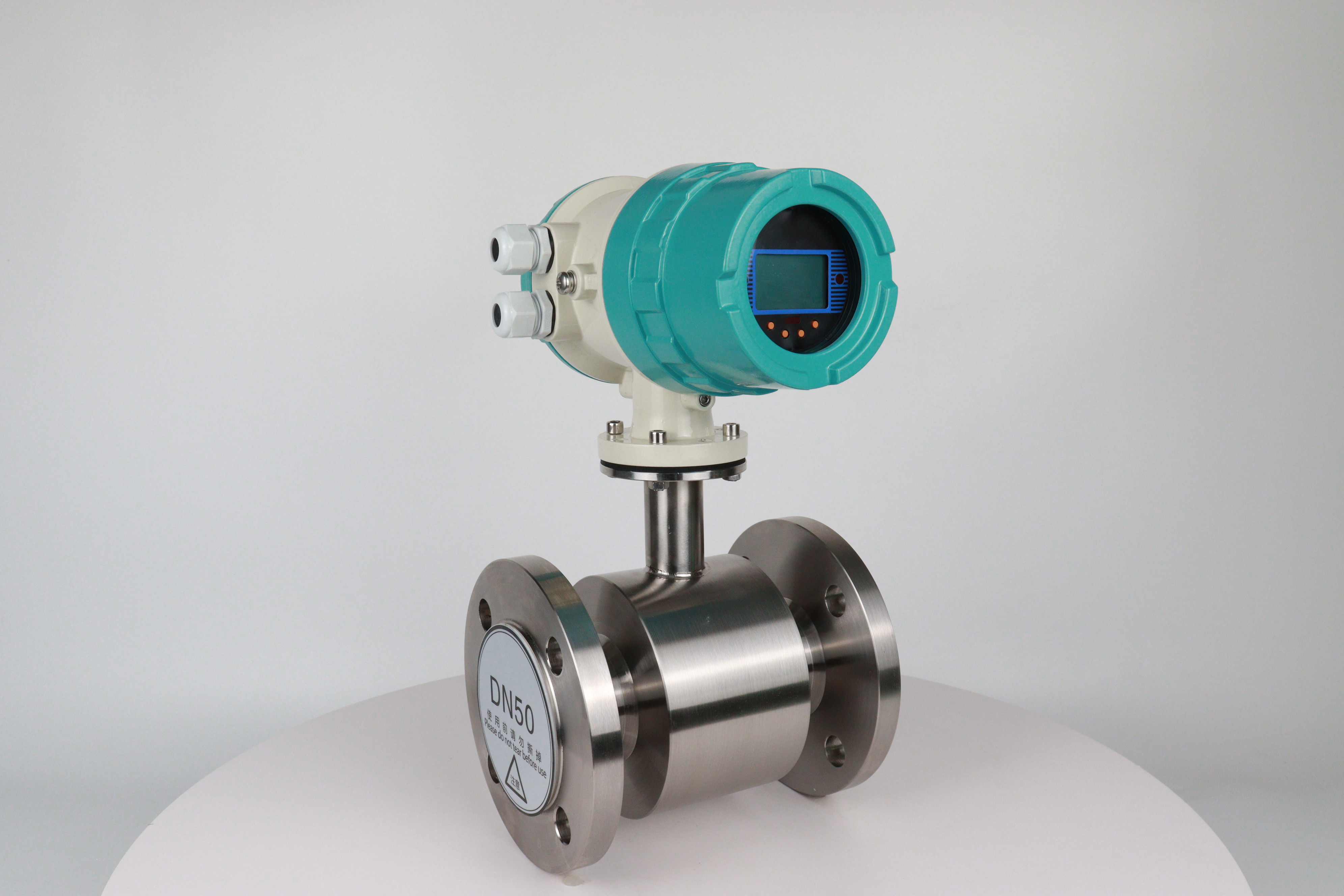

Integrated / compact

Measuring fluid

conductive fluid and slurry

Caliber

DN8--DN3000

 End connection

Flange, threaded, clamping, insertion type, etc.

Electrode materials

SUS316L, Titanium, Tantalum, Hastelloy B, Hastelloy C, Platinum-iridium, Stainless steel covered with tungsten carbide

Flange standard

GB, DIN, JIS, EN, SABS, etc.

Lining Material

PTFE, PFA (resistance to negative pressure), chloroprene rubber, polyurethane, hard rubber (optional conductive ground rubber), F46

Electrode Type

Standard type 316L, scraper-type (DN ≥ 50)

Dielectric conductivity

> 5μs/cm (water> 20μs/cm)

Accuracy grade

±0.5% RS.

Flow Range

0-10m/s

Maximum temperature

of medium

For rubber liner ≤ 80 °C,  for PTFE liner ≤ 120°C

Ambient temperature

-20 - +60

Working pressure

0.6Mpa-4.0Mpa, the special high rpressure is available

Protection Level

IP65, IP67, IP68 (optional)

Power

220VAC(85~250 voltage)    24VDC(11~40 voltage)

Display

Forward and backward instantaneous flow rate, total flow, velocity, flow rate percentage with back light

Output

4-20mA current output ,0-1kHz frequency output, pulse output per unit volume

Communication

RS485 @Modbus, RS232@Modbus, HART, Profibus, GPRS, etc.
