            Remote Type Pulse Output Vortex Flowmeter
Flange Clamping Vortex Flowmeter







 Remote Type Pulse Output Vortex Flowmeter
Remote Type Pulse Output Vortex Flowmeter
Remote Type Pulse Output Vortex Flowmeter
Applicable mediumgas, liquid, steam
Not applicable
Advantage

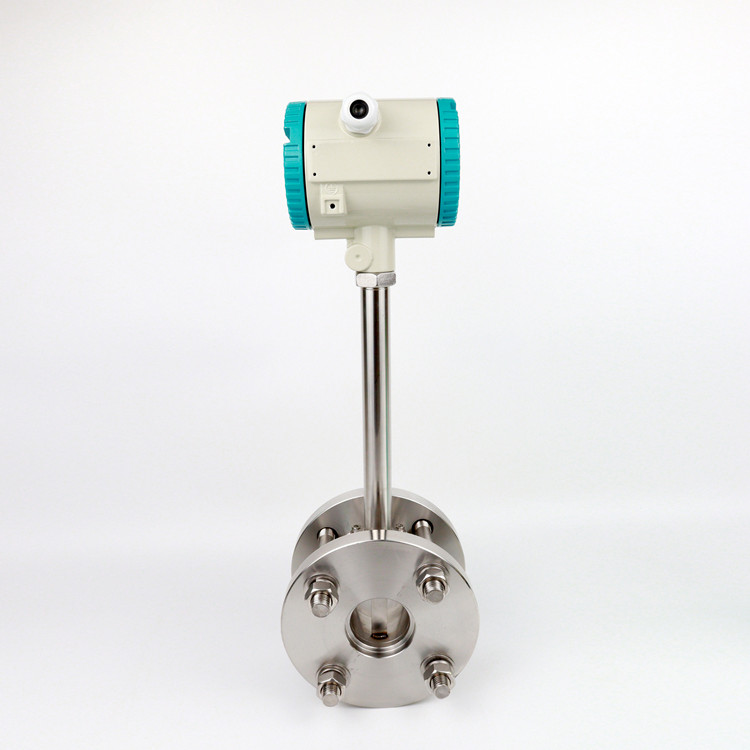

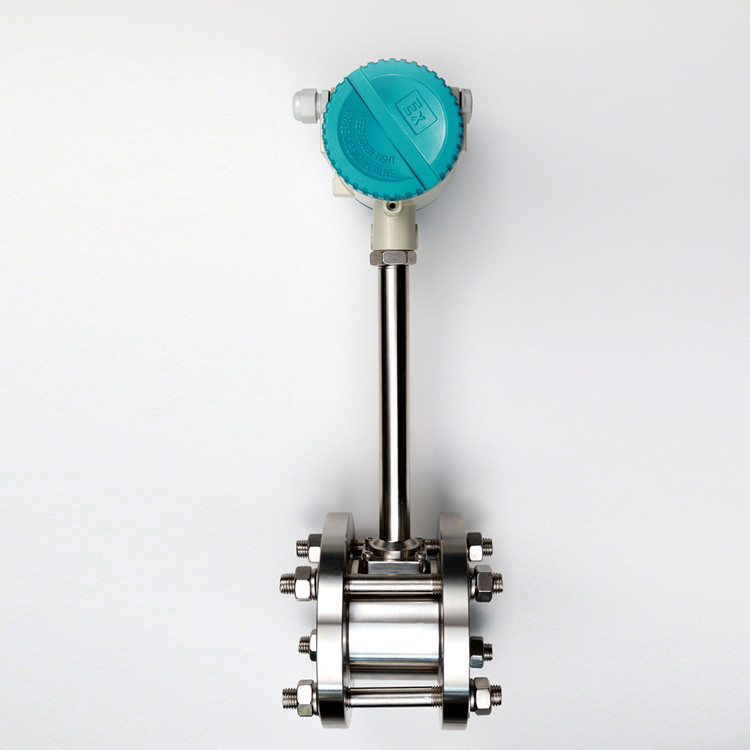

Flange, flange wafer and insertion, 3 different connection methods are optional
Basic pulse output
Without LCD display
Features
1. Simple structure, no moving parts, high reliability
2. High accuracy 1.0%, 1.5%
3. Wide measuring range, up to 1:10 ratio
4. Resist high temperature up to 350℃,normal temperature up to 250℃
5. Integral forging, anti-rust, long service life
6,Less pressure loss, lower operating costs, more energy-saving significance.

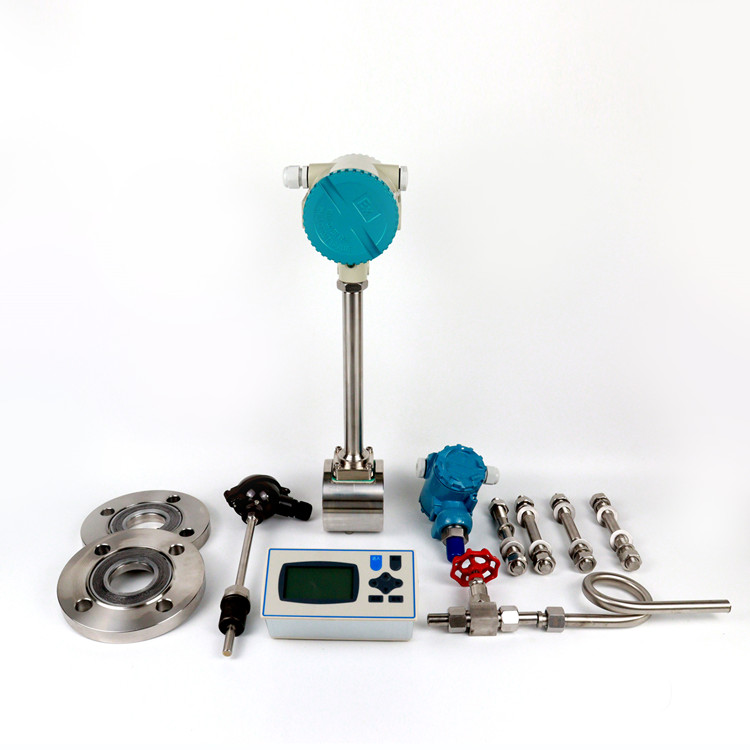

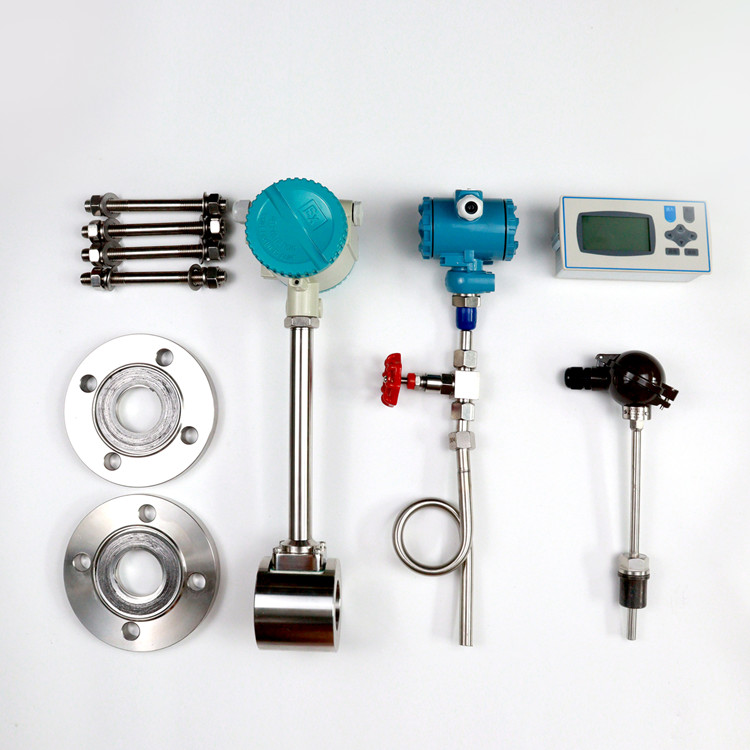

7. Basic wafer vortex flow sensor with pulse output. Pressure transmitter, temperature transmitter and totalizer could be used according to requirements.
Flow range table
| DN size (mm) | Liquid | Gas | ||
| Standard | Extension | Standard | Extension | |
| 15 | 0.8-6 | 0.5-8 | 6-40 | 5-50 |
| 20 | 1-8 | 0.6-12 | 8-50 | 6-60 |
| 25 | 1.5-12 | 0.8-16 | 10-80 | 8-120 |
| 40 | 2.5-30 | 2-40 | 25-200 | 20-300 |
| 50 | 3-50 | 2.5-60 | 30-300 | 25-500 |
| 65 | 5-80 | 4-100 | 50-500 | 40-800 |
| 80 | 8-120 | 6-160 | 80-800 | 60-1200 |
| 100 | 12-200 | 8-250 | 120-1200 | 100-2000 |
| 125 | 20-300 | 12-400 | 160-1600 | 150-3000 |
| 150 | 30-400 | 18-600 | 250-2500 | 200-4000 |
| 200 | 50-800 | 30-1200 | 400-4000 | 350-8000 |
| 250 | 80-1200 | 40-1600 | 600-6000 | 500-12000 |
| 300 | 100-1600 | 60-2500 | 1000-10000 | 600-16000 |
| 400 | 200-3000 | 120-5000 | 1600-16000 | 1000-25000 |
| 500 | 300-5000 | 200-8000 | 2500-25000 | 1600-40000 |
| 600 | 500-8000 | 3000-10000 | 4000-40000 | 2500-60000 |
