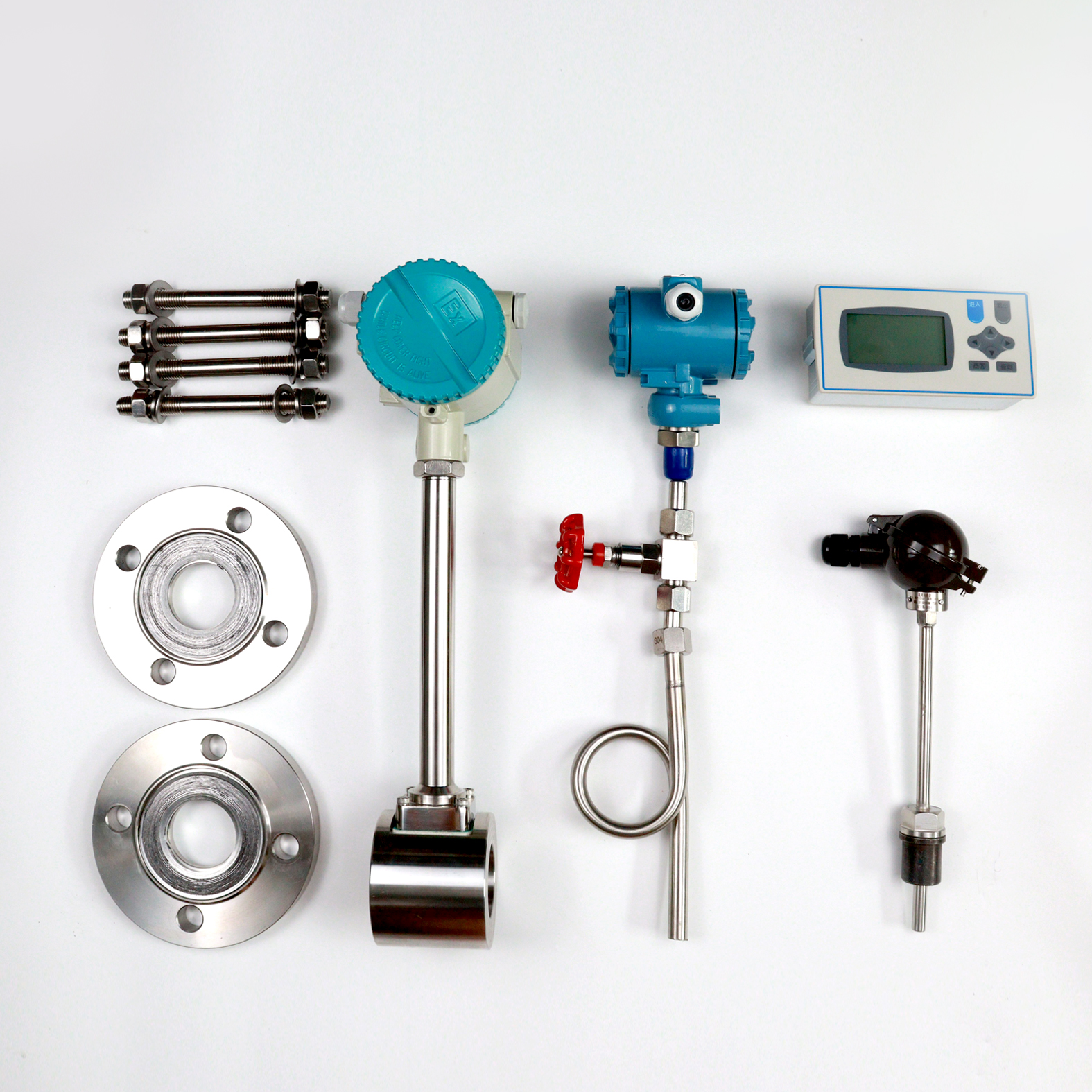

Flange Clamping Vortex Flowmeter

Flange Clamping Vortex Flowmeter

Applicable mediumLiquid, hot oil, pur

Not applicable

Flange-type vortex flowmeter is a measuring instrument with high measurement accuracy, simple installation, low maintenance, and wide range of uses. It is currently widely used in petrochemical, metallurgy, textile, urban construction, energy and other industries.
0371-26665688 13353783998
Description of product details

Flange connection vortex flow meter feature


1. Simple structure, no moving parts wear;

2. Flange clamping connection method, easy installation.

3. High accuracy and good reliability, don’t need on-site debugging

4.Unique design of the amplification board, gas or liquid can be used

5. Can be long-distance transmission of flow signals, and computer networking, centralized management; It has a variety of data transmission methods, including 4-20ma output, frequency output, RS485 output, if you need to pass the RS485 protocol to receive data, we can be satisfied. Of course, we will also instruct you on how to install .



Technical parameters


Measuring diameter

DN15~DN300

Relative humidity

5℃~90℃

Atmospheric pressure

86~106kPa

Medium temperature

-40℃~+200℃;-40℃~+280℃;-40℃~+350℃

Nominal pressure

1.6MPa;2.5MPa;4.0MPa;6.3MPa

Media type

Liquid, gas, steam

Accuracy class

Liquid 1.0%; gas, steam 1.5%

Measuring range ratio

1:10

Medium temperature

-40~350 degrees Celsius

Power supply

12~24V DC

Output signal

4~20mA

photobank (28).jpg

photobank (4).jpg

photobank (9).jpg

photobank (15).jpg
